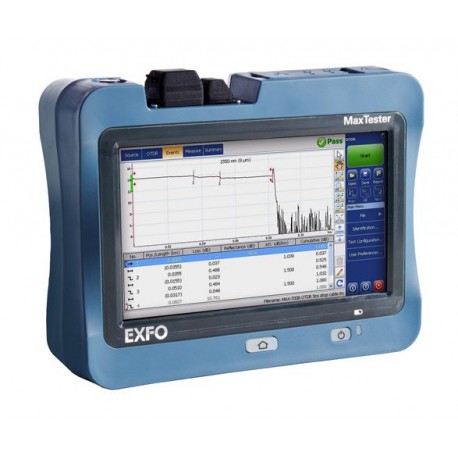

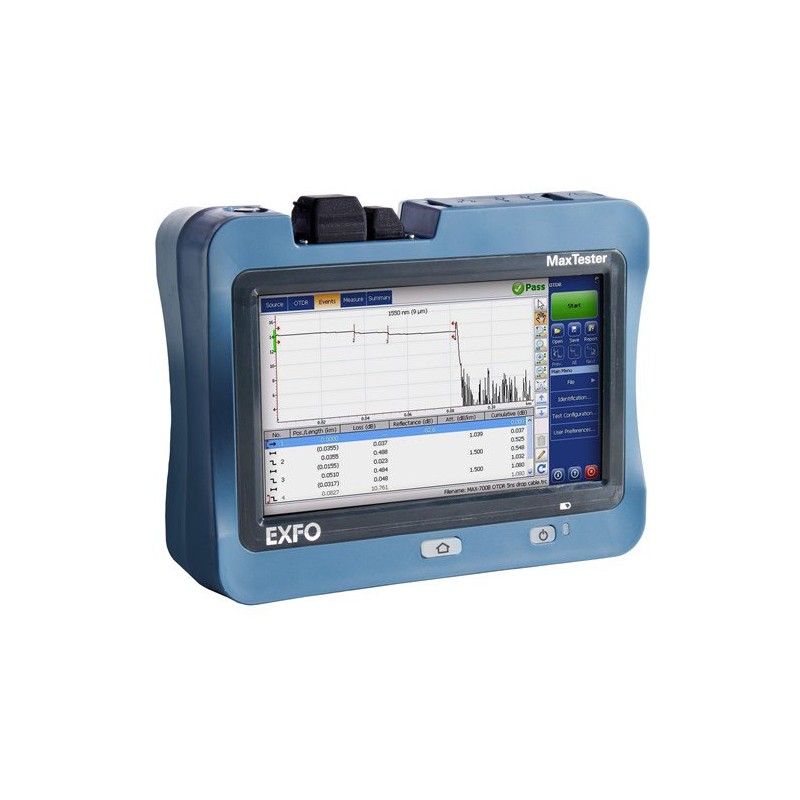

EXFO MaxTester 715B

محصول جدید

MaxTester 715B

Last-Mile OTDR Fully featured, entry-level, dedicated OTDR with tablet-inspired design perfect for frontline singlemode fi ber installers. POINT-TO-POINT (P2P) LINKS, LAST-MILE INSTALLATION AND TROUBLESHOOTING

جزییات بیشتر

موارد استفاده Fully featured, entry-level, dedicated OTDR with tablet-inspired design perfect for frontline singlemode fiber installers
سایز 155x200x68 mm
وزن 1.29 kg
شرایط کارکرد رطوبت 0 % to 95 % noncondensing
شرایط کارکرد دمای محیطی –40 °C to 70 °C
محدوده قدرت(Dynamic Range) 30/28/28 dB
محدوده غیر قابل اندازه گیری (Dead Zone) 1
تضعیف ناحیه مرده (Attenuation dead zone) 4
مسافت (Distance range) 0.1 to 160
عرض پالس ( Pulse Width) (ns) 5 to 20 000
حالت خطی(Linearity(dB/dB ±0.05
آستانه تضعیف (Loss threshold (dB 0.01
دقت تضعیف (Loss resolution (dB 0.001
دقت نمونه برداری (Sampling resolution (m 0.04 to 5
نقاط نمونه برداری Sampling points Up to 256 000
زمان اندازه گیری Measurement time User-defined (maximum: 60 minutes)
صفحه نمایش Display 7-in (178-mm) outdoor-enhanced touchscreen, 800 x 480 TFT
پورتها و اتصالات Interfaces Two USB 2.0 ports RJ45 LAN 10/100 Mbit/s
فضای ذخیره سازی اطلاعات Storage 2 GB internal memory (20 000 OTDR traces, typical)
باطری Battery Rechargeable lithium-polymer battery 12 hours of operation as per Telcordia (Bellcore) TR-NWT-001138
منبع تغذیه Power Supply Power supply AC/DC adapter, input 100-240 VAC, 50-60 Hz, 9-16 V DCIN 15 Watts minimum
واحد پردازشگر مرکزی Cpu Atom Processor
سیستم عامل O.S windows-like GUI

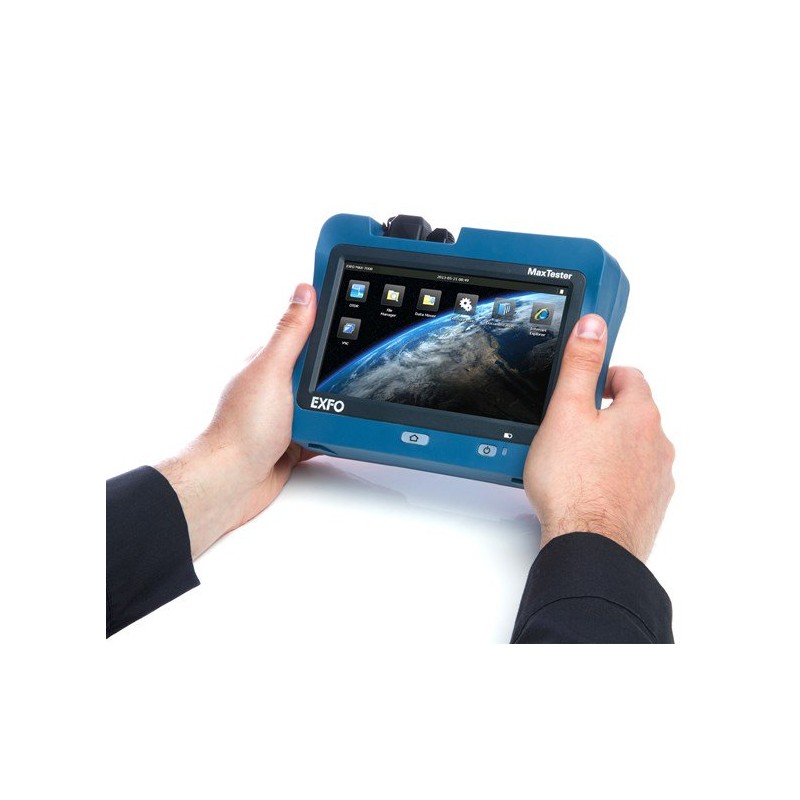

The Handheld OTDR... Reinvented.

The MaxTester 700B series is the first tablet-inspired OTDR line that is handy, lightweight and rugged enough for any outside plant environment. With a 7-inch, outdoor-enhanced touchscreen—the most efficient handheld display in the industry—it delivers an unprecedented user experience. Its intuitive Windows-like GUI ensures a fast learning curve. Plus, its new and improved OTDR 2.0 environment offers icon-based functions, instant boot-up, automatic macrobend finders as well as improved auto and real-time modes.

The MaxTester 700B series is a line of genuine high-performance OTDRs from the world’s leading manufacturer. It delivers EXFO’s tried and true OTDR quality and accuracy along with the best optical performance for right-first-time results, every time.

The amazing 12-hour battery life will never let a technician down, and the plug-and-play hardware options, like the VFL, power meter and USB tools, make every technician’s job easier. Most importantly, the Max-700B series is finally bringing the iOLM, an intelligent OTDR-based application, to the handheld market. This advanced software turns even the most complex trace analysis into a simple, one-touch task.

Ultimately, the MaxTester 700B series is small enough to fit in your hand and big enough to fit all your needs!

The Entry-Level Solution Designed for All Your Testing Needs

The MaxTester 715B OTDR/iOLM is optimized for the point-to-point testing and troubleshooting of FTTx architectures, and isideal for testing short fibers (e.g., inside a CO environment or at FTTA/DAS network installations).

Other models available :

  • MaxTester 720B: Access for any short network construction (36 dB)
  • MaxTester 730B: FTTH/PON installation and maintenance for testing through optical splitters and short P2P metro (39 dB)
