فوجیکورا 70S

Fujikura70s

محصول جدید

سریع ترین دستگاه فیوژن فیبر نوری در دنیا World's quickest splicing 7sec / tube-heating 14sec

ساخت شرکت فوجیکورا ژاپن

جزییات بیشتر

سایز 146W x 159(D) x 150(H) mm
وزن 2.5kg with ADC-18 AC adaptor 2.7kg with BTR-09 battery
مورد استفاده فیبر نوری با استاندارد SM (ITU-T G.652 & G.657), MM (ITU-T G.651),DS (ITU-T G.653), NZDS (ITU-T G.655),Others
تعداد فیبر جهت جوش همزمان 1
ضخامت فیبر نوری 80-150μm
ضخامت روکش فیبر نوری 100-1000μm
اندازه طولی برش فیبر 5 to 16mm using Sheath Clamp A, B or 5 to13mm using FH-60-250, FH-60-900
میزان افت جوش واقعی 0.02dB with SM, 0.01dB with MM, 0.04dB with DS, 0.04dB with NZDS
زمان جوش 7sec:SM FAST mode, 12sec :SM AUTO mode, 15sec:AUTO mode
میزان اتلاف برگشتی 60dB or greater
برآورد افت جوش Several types of core deformations as well as core axis offset are taken into account for accurate loss estimate
میزان فضای ذخیره سازی The last 2000 results to be stored in the internal memory
قدرت بزرگنمایی X / Y (300X magnification), or both X and Y simultaneously (160X magnification)
روش مشاهده By two CMOS cameras for intersecting fiber viewing and 4.73 inches TFT colour LCD monitor
تست کشش 1.96 to 2.25N
شرایط کارکرد ارتفاع از سطح دریا 0-5000M
شرایط کارکرد رطوبت 0-95% RH
شرایط کارکرد دمای محیطی 10to 50°C-
سایز کریمپ حرارتی مورد استفاده 4-6 cm
مدت زمان شرینک 13-15sec
تعداد جوش و شرینک با باطری 200 times of splicing and heat shrinking under with BTR-09
ولتاژ ورودی و خروجی Auto voltage selection from 100 to 240Va.c. or 10 to 15Vd.c. with ADC-18. 14.8Vd.c. with BTR-09
طول عمر الکترود 3000 arc-discharges

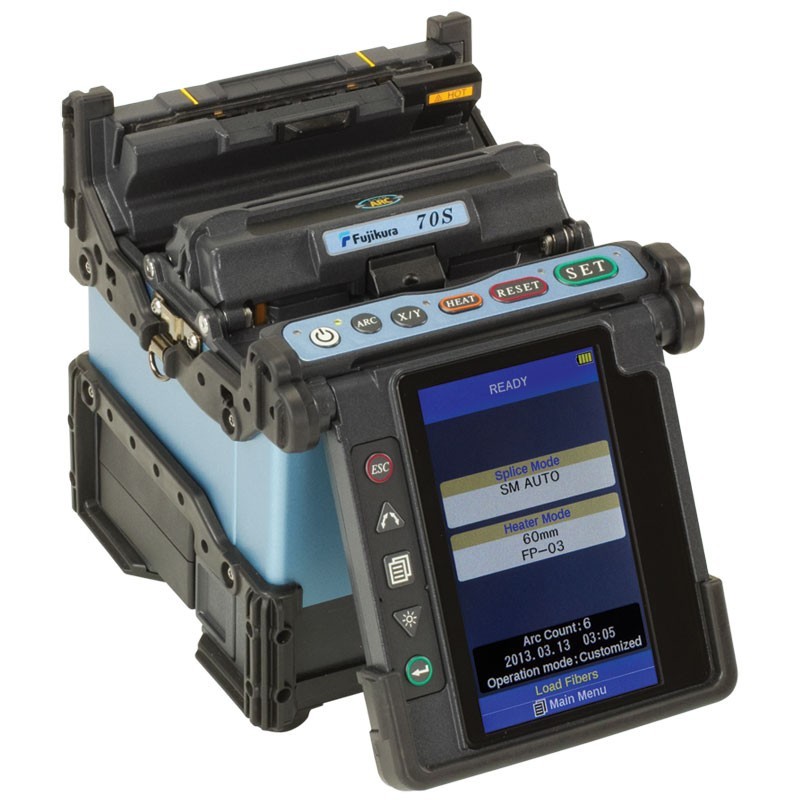

Description The FSM-70S is core-to-core alignment single fiber splicer,which is designed for splicing single-count optical fiber for telecommunication use.Shock resistance, dust resistance, and rain resistance....

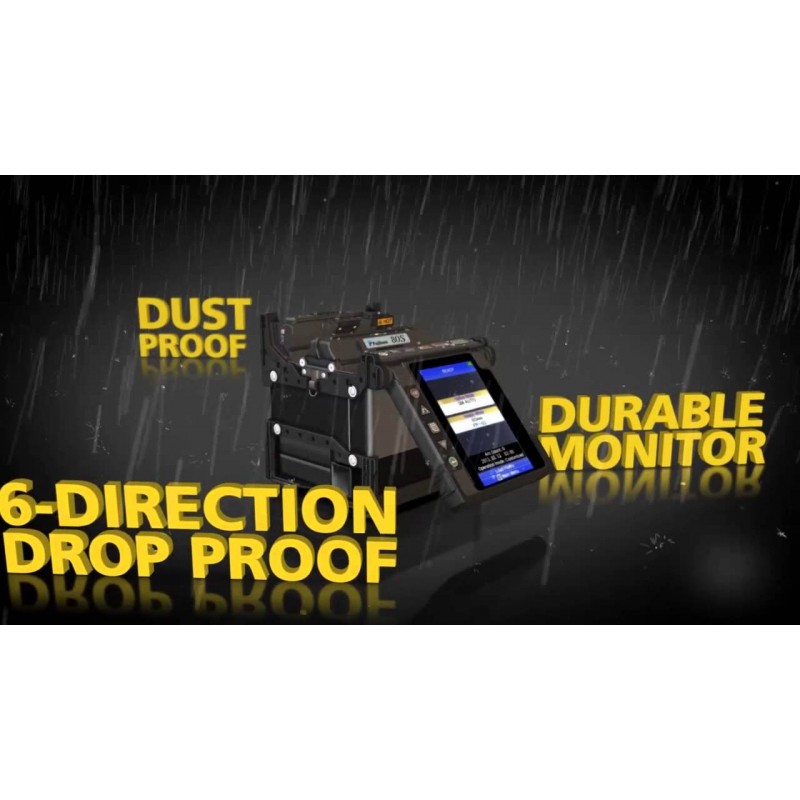

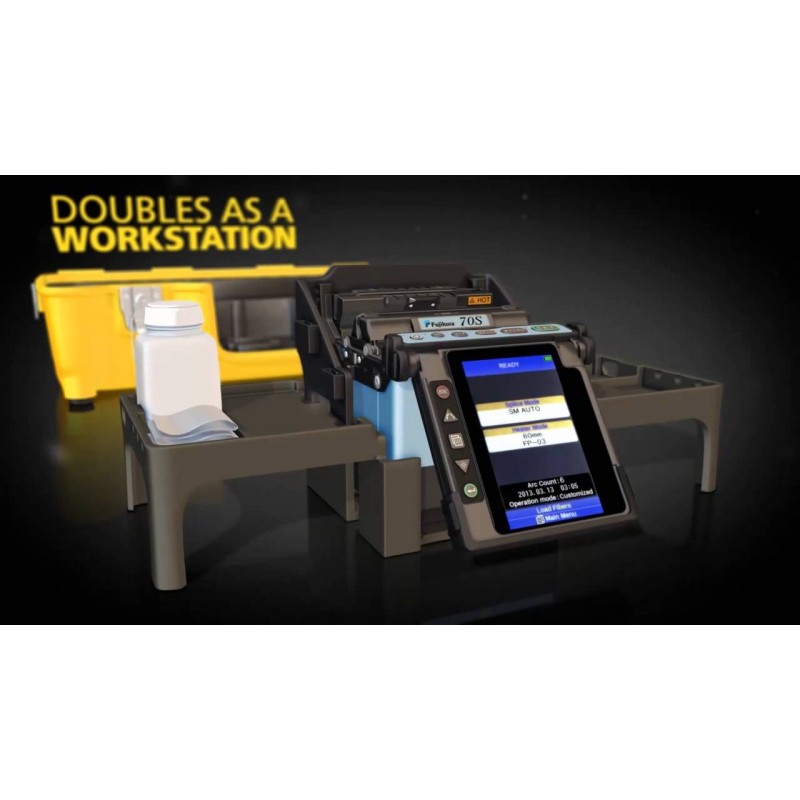

Feature The FSM-70S is core-to-core alignment single fiber splicer succeeding to FSM-60S. In addition to ruggedized concept, which 60S created, the 70S has a series of new features, such as "Automated wind-protector and tube-heater" for quicker splicing cycle as well as fewer operation steps, "innovative carrying-case design" for quicker preparation, "powerful Li-ion battey" for longer operation, high resolution bigger LCD monitor, and "built-in operation manuals" in various languages. Market is from backbone network installation to opto-electronics components production for quality splice. Specifications Those features maximize productivity and operatability in splicing at the field. Automated Wind-protector / Tube Heater Reduced splicing steps, and the world's fastest splicing / heating times. Innovative Carrying Case Design A detachable built-in working table is inside for quick start of splicing Environmental Resistance The world's first 6-direction drop proof, dust and water resistant. Wide Color LCD Monitor High resolution 4.7 inch monitor with better visibility under daylight. Powerful Li-ion Battery 200 splice and heating cycles per full charge. Pre-installed Manual Manuals including operation, troubleshooting and others are available through the monitor.
